Home > Solutions > CyberView > Rack Console Drawers > Multi-Display > MRK-F17
MRK-F17 - 2U FHD Multi-display Console Drawer
MRK-F17-2L - Dual Display (Left Mount) 1080p Console Drawer
MRK-F17-2R - Dual Display (Right Mount) 1080p Console Drawer

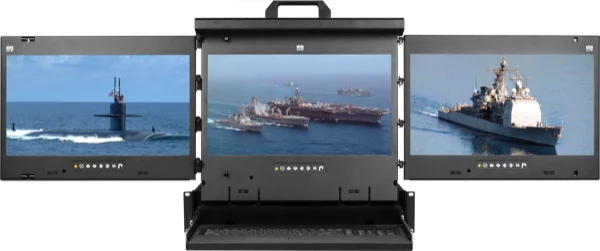

MRK-F17, 2U FHD Multi-display Console Drawer

The CyberView MRK-F17 2U Multi-display rack console features a 17.3″ FHD LED-backlit LCD capable of 1920 x 1080 video.

SKU: MRK-F17 Categories: , ,

Display Resolution: 1080p FHD (1920 x 1080)
Compare

Benefits

  • Multi-display console drawer with LED-backlit LCD panels
  • 2U 21.7" short depth design
  • Light weight
  • Rugged construction for mobility & durability
  • Built-in solid bearing slide rails
  • Built-in dual stereo speaker ( per display )
  • DVI-D + VGA video input ( per display )
  • 104-key keyboard with either touchpad or trackball
  • Fits 24" ~ 36" rack via adjustable mounting brackets
  • 2-year standard warranty ( upgradable up to 5 years )

Options

  • DC power : 12V / 24V / 48V / 125V / 250V
  • 3G / HD / SD-SDI Broadcast-grade input
  • Sunlight readable LCD
  • Projected Capacitive 10-pt / Resistive 1-pt Touch Screen
  • Front USB hub port for device access
  • HDMI 1.4 / DP 1.0 video input
  • Keyboard available in 9 languages
  • SUN Micro keyboard options available
  • USB keyboard & mouse selector

Design

Featuring a FHD LED-backlit LCD display and notepad keyboard with touchpad or trackball, the CyberView MRK-F17 are the leading Rack Console solution for data centers & other IT environments. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the-art, modular rack console drawer.

Get Info

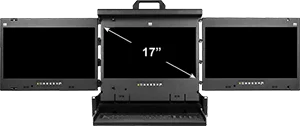

  • MRK-F17 - 17" FHD Triple Display

    17" FHD Triple Display

    MRK-F17 features 17" FHD multi-display that support up to three panels with 1920 x 1080 native resolution.

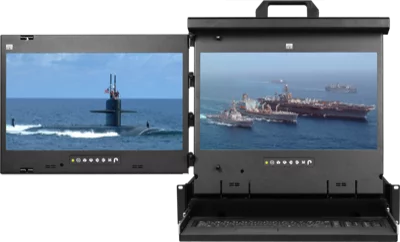

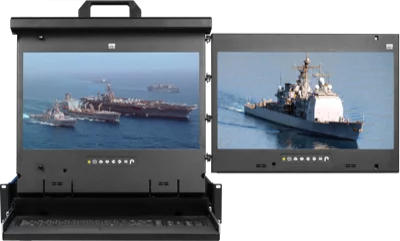

  • MRK-F17 - LH or RH Mounted Dual Display

    LH or RH Mounted Dual Display

    Models with dual display in left hand or right hand mounted available for different installation environment.
  • MRK-F17 - 2U Rack Mount

    2U Rack Mount

    The 2U 22" depth platform allows for small size and transit case portability.
  • MRK-F17 - Solid and rigid handle

    Solid and rigid handle

    Our special design for multi-display features a firm and rigid handle for easy access.

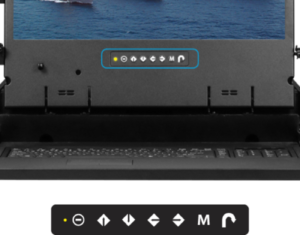

  • MRK-F17 - LCD Membrane

    LCD Membrane

    Provides a convenient way to control device settings & switch between sources.
  • MRK-F17 - DVI-D + VGA + USB Standard Input

    DVI-D + VGA + USB Standard Input

    Optional HDMI+VGA or DP+VGA video input. 3G / HD / SD-SDI input and DC power input available on request

MRK-F17 Specifications

SKU MRK-F17
Brand

CyberView
Categories

, ,

Form Factor

2U Rack Mount
Screen Size

17 Inch
Display Resolution

1080p FHD (1920 x 1080)
Display Brightness

300 cd/m²
Mouse

Touchpad, Trackball
Features
Triple / Dual (Left or Right Mount) Display,
Dual Stereo Speakers ( Per Display )
MTBF

15,000 Hours
Compliance

CE, UKCA, FCC, REACH, RoHS3, WEEE

Support & Downloads

Technical Support

WE ARE HERE TO HELP! Please contact our experts for technical assistance.

Contact Us

Have Any Questions?

Please enable JavaScript in your browser to complete this form.

Ordering

Package Icon

Package Contents

  • (1) MRK-F17 Console Drawer
  • (1) CX-6A 6ft DVI-D console cable
  • (1) Power adapter & Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-Year standard warranty upgradable up to 5 years

2 Years Standard Warranty

on all purchases. Expandable up to 5 years.
