MINIBOOT

MiniBoot Resources

Product Series Resources

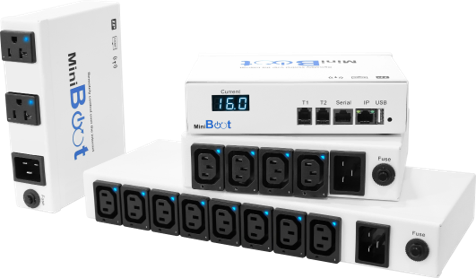

MiniBoot

Brochure

Brochure Series Publication
PDF Mini IP Solutions MiniBoot + Mini IP KVM Aug, 2024
PDF MiniBoot MiniBoot Web Power Reboot Aug, 2024
PDF Mini IP KVM Mini IP Solution Aug, 2024

User Manual

User Manual Series Publication
GUI for MiniBoot Web Power Reboot Aug, 2024
PDF Mini IP KVM Mini IP Solution Jun, 2024

Technical Drawings

Single Feed, Single LAN

Voltage Model No. Outlet Inlet Amp
110V PDF MiniBoot-2US NEMA x 2 C20 x 1 15A
PDF MiniBoot-4US NEMA x 4
PDF MiniBoot-8US NEMA x 8
208V PDF MiniBoot-2C13 C13 x 2 C20 x 1 16A
PDF MiniBoot-4C13 C13 x 4
PDF MiniBoot-8C13 C13 x 8
230V PDF MiniBoot-2C13 C13 x 2 C20 x 1 10A / 13A / 16A
PDF MiniBoot-4C13 C13 x 4
PDF MiniBoot-8C13 C13 x 8
PDF MiniBoot-4UK UK x 4 C20 x 1 10A / 13A / 16A
PDF MiniBoot-4SCH Schuko x 4 C20 x 1 10A / 16A
PDF MiniBoot-4FR French x 4 C20 x 1 10A / 16A

* Input cordset excluded

** Custom configurations on request

Dual Feed, Dual LAN

Voltage Model No. Outlet Inlet Amp
110V PDF MiniBoot-D8US NEMA x 8 C20 x 2 15A
208V PDF MiniBoot-D8C13 C13 x 8 C20 x 2 16A
230V PDF MiniBoot-D8C13 C13 x 8 C20 x 2 10A / 13A / 16A

* Input cordset excluded

** Custom configurations on request

Software

Software Series Publication
IP Utilities MiniBoot Mar, 2021
MIB MiniBoot Mar, 2021
Firmware MiniBoot Apr, 2024
