UltraRack SR 1012 series rack is specifically designed to deploy Cisco Nexus 7000 Series switches in data center. It provides a complete and optimized infrastructure solution for fully configurated Cisco Nexus 7000.
Additional interior space achieves the clearance requirements for front, rear and sides of the Nexus models. Superior cable management, enhanced framework, diversified air duct and blanking options ensure proper airflow for maintaining Nexus 7000 switches in long-lasting high performance.
The UltraRack SR 1012 racks integrates seamlessly with all Austin Hughes infrastructure equipment, including InfraAisle Containment, InfraCool Fan Units, InfraPower PDUs, InfraSolution SmartCard handles, InfraGuard environmental sensors, LED Light Bar, CyberView KVM and LCD drawers. Rack models are available in three heights to match site requirements. Apart from the Cisco Nexus 7000 series, it supports a mix of patch panels and other high density switches.
SR Series 1000W
UltraRack SR 1012 series rack is specifically designed to deploy Cisco Nexus 7000 Series switches in data center. It provides a complete and optimized infrastructure solution for fully configurated Cisco Nexus 7000.
Additional interior space achieves the clearance requirements for front, rear and sides of the Nexus models. Superior cable management, enhanced framework, diversified air duct and blanking options ensure proper airflow for maintaining Nexus 7000 switches in long-lasting high performance.
The UltraRack SR 1012 racks integrates seamlessly with all Austin Hughes infrastructure equipment, including InfraAisle Containment, InfraCool Fan Units, InfraPower PDUs, InfraSolution SmartCard handles, InfraGuard environmental sensors, LED Light Bar, CyberView KVM and LCD drawers. Rack models are available in three heights to match site requirements. Apart from the Cisco Nexus 7000 series, it supports a mix of patch panels and other high density switches.
-
Model Coverage

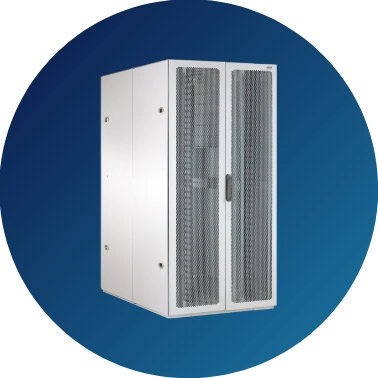

Standard rack configurations from 42U to 47U in height. Custom sizes available on request. -
Door & Cladding

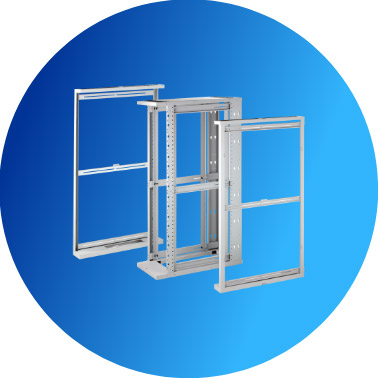

Diversified selection of doors, side panels & top covers. -
Cabling
Framework allows multi-dimensional cable pathways. Numerous efficient cabling options. -
Airflow & AirDucts
Air Blanking Panels prevent air recirculation by occupying unused rack space. Rack Seal Kits prevent air loss underneath the racks and the gap between racks. -
Cooling
EXD Door removes heated air and prevents the build up of heated air inside the rack. InfraCool Fan Unit provides variety fan unit form factors for different cooling requirement. -
Power
Metered PDU for cost efficient power distribution. Intelligent kWh PDU for remote management. -
Security
Standalone smartcard handles with an affordable price and easy installation. Networked version enables complete smartcard rack access management with software. -
Control
LCD console drawer combines the display, keyboard and touchpad in 1U rack space KVM allows remote or local access and control to multiple servers in the racks.
Key Highlights
SR Heavy Duty Rack
1000W
- Rigid frameworks ( with 2.0 mm steel ) supports up to 1200 kg load capacity
- 1000 mm width provides sufficient space for managing your switch and cables
- Perforated rack doors ensure ideal airflow direction
- Well-engineered to accommodate tool-less mounting PDU x 2
- Framework allows multi-dimensional cable pathways and numerous efficient cabling options
- Integral cable management ( Finger Guide / Cable Ring / Cable Tray ) and large pathways for cable routing
- Top cable entries with brushes allow cables to easily enter or exit the rack
- Full height cable brushes not only provides air blanking features, but also allows easy cabling and equipment setup
- Variety airflow duct options perfectly guide the airflow circulation for different Nexus models
- Easy to deploy and adaptable to Aisle containment to achieve an efficient airflow management
- Quick release mechanism design for door and split side panel
- Tool-less adjustment for front and rear 19″ rails
- Universal-fit platform for multiple brands of servers and 19″ rackmount equipment
Door and Cladding
Cabling

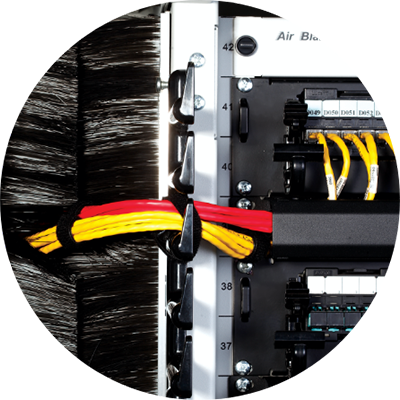

The primary purpose of cable management is to maintain optimal airflow and facilitate installations, upgrades & servicing of IT systems. As the number of IT components within each rack continues to increase, so do the number of power and data cables required.
Recognizing these challenges, Austin Hughes has responded with a comprehensive selection of optional components that allow users to pick the ideal cable management solution for their particular IT environment.
AirFlow
Unobstructed airflow is critical to switch performance. One of the biggest challenges is how to match different airflow requirement of each specific Nexus 7000 switch model.
The InfraAisle Containment with SR-1012 racks are designed to deploy Nexus switches and other IT equipment in a cool aisle data center environment. An ideal data center environment is given with the use of Air Blanking Panels, Seal Kits as well as Full Height Cable Brush in the aisle containment and server racks.
Air Ducts
The SR-1012 Rack is an ideal solution, whether your switch model air circulation design is front-to-back, bottom or side venting. Each Cisco model can intake and exhaust air properly by applying the corresponding SR-1012 air duct combination.
Cooling
Thermal management presents big challenges for today’s data centers, chief among which is cooling equipment in enclosed racks.
InfraCool® intelligent cooling solutions provide appropriate airflow, while helping minimize operational costs associated with data center energy consumption. Make InfraCool® an integral part of your rack cooling strategy today.
Power
Rapidly escalating power requirements require a complete suite of rack PDU models to help data center managers meet rising demand.
InfraPower® intelligent PDUs can be integrated with your rack to provide power management, including monitoring from the PDU branch level on down to the outlet. Switched models are also available that can provide remote on/off outlet switching functionality from anywhere in the world. Offered in many sizes and configurations, our PDUs provide the voltage, current, outlet number and type of connections required to fit any need.
Security
Rack access control has become critically important for all data centers and server rooms. To meet the increasing needs, Austin Hughes offers the InfraSolution S ( Standalone ) and InfraSolution X ( Networked ) series.
Control
Austin Hughes solutions provide data center managers and administrators instant secure, local and remote access control to mission critical equipment.
Our leading edge CyberView LCD console drawer and KVM Solutions provide the widest range, available on the shortest lead-times in the market today whilst ensuring capital equipment and software management costs are kept to an absolute minimum.
Product Highlight
Accessories
Cabling
Cable Management Panel
Cable Rings, Pack of 10
- CMR-120P: for the rear, 88 x 120 mm
Finger Guide, Set of 2 Sides
Full Height Cable tray, Hook & Loop Type, 150 mm Wide, Pair
- CT-42U-W150: for 42U rack
- CT-45U-W150: for 45U rack
- CT-47U-W150: for 47U rack
Full Height Cable Brush, Left & Right Side
Air Duct
Side Air Duct Set
- ADS-7U: 7U, for Cisco Nexus 7004
- ADS-14U: 14U, for Cisco Nexus 7009
- ADS-25U: 25U, for Cisco Nexus 7018
Bottom Air Intake Duct
- ADB-14U: 3U, for Cisco Nexus 7009
- ADB-2125U: 3U, for Cisco Nexus 7010 / 7018
Air Blanking
Plastic Tool-less Blanking Panel
- ABP-1P: 1U
Steel Tool-less Blanking Panel
Steel Blanking Panel with Cable Brush
- ABP-CB-1: 1U
Side Air Blanking Panel, Front Left & Right Side
- ABP-S1-1012: 1U
- ABP-S2-1012: 2U
Rack to Floor Seal Kit
- PSK-1000D-SR: 1000 mm deep SR rack, left & right
- PSK-1200D-SR: 1200 mm deep SR rack, left & right
Cooling
Basic Model
Intelligent Model
- MRF-33.9A: Master 33U IP door mount extract fan panel, 9 fans, for rear door
- RF-33.9A: Expansion 33U serial door mount extract fan panel, 9 fans, for rear door
- MRF-33.9B: Master 33U IP door mount intake fan panel, 9 fans, for front door
- RF-33.9B: Expansion 33U serial door mount intake fan panel, 9 fans, for front door
- WF-66.4: IP raised floor mount fan unit, 4 fans, cool air from top
- WF-66.4B: IP raised floor mount fan unit, 4 fans, cool air from bottom
Rear Extract Fan Door (10 Fans)
- EXDS-42.10-VH: 42U middle split
- EXDS-45.10-VH: 45U middle split
- EXDS-47.10-VH: 47U middle split
Front Intake Fan Door (10 Fans)
- INTS-42.10-VH: 42U middle split
- INTS-45.10-VH: 45U middle split
- INTS-47.10-VH: 47U middle split
Shelf & Drawer
Cantilever Shelf, 20 kg Loading
Lockable Document Drawer, 30 kg loading
1U Rack 104-key Keyboard Drawer
Others
Baying Kit
- TBK-1012: Top baying bracket x 2, for SR-1012 rack
Copper Bus Grounding Bar, pc, with Insulator x 3
LED Light Bar with Magnetic Base & IR Sensor
- CLB-SD-IR-101: LED light bar x1
- CLB-SD-IR-102: LED light bar x2
