With today’s high density heat loads inside server racks, cooling should be an integral part of the rack equipment. InfraCool Basic Door Mount Fan Panel F-33.9 series is designed as an efficient airflow solutions for server racks with high heat loads.
The light weight and simple mounting design allows the door mounting on the perforated doors of every branded rack. Strong airflow created by the fan panel highly improve the temperature conditions of high density rack-mounted rack.
Cool Air In
Hot Air Out
-
- 33U
Rear door outside (Extract airflow) / Front door inside (Intake airflow) - Basic
- 972 CFM
- 33U
-
- 33U
Front door outside (Intake airflow) / Rear door inside (Extract airflow) - Basic
- 972 CFM
- 33U
High quality, low-cost, Door Mount Fan Panels
With today’s high density heat loads inside server racks, cooling should be an integral part of the rack equipment. InfraCool Basic Door Mount Fan Panel F-33.9 series is designed as an efficient airflow solutions for server racks with high heat loads.
The light weight and simple mounting design allows the door mounting on the perforated doors of every branded rack. Strong airflow created by the fan panel highly improve the temperature conditions of high density rack-mounted rack.
Play VideoCool Air In
Hot Air Out
Key Benefits
-
Strong airflow created by the InfraCool 33U fan panel highly improve the temperature conditions of high-density rackmounted rack and hence minimize rack hot spots. -
The light weight design of 33U door mount fan panel allows mounting on to the rack perforated doors by screws or optional hanging bracket. -
Each 33U fan panel is bundled with an external temperature sensor with 2M cord. The front panel LED shows the temperature detected by sensor. User can monitor the rack level temperature when operating the fan panel. -
The door mount fan panel can be attached to most 37U or taller racks. Simple mounting design of door mount fan panel allows mounting on to the perforated doors of every branded rack. An optional hanging bracket kit also lets you hang the fan panel on the rack door.
Model Overview
- Easy installation with common tools
- Thin & light weight design only 4.6 kgs / 10.1 lbs
- Designed for low noise & high airflow performance
- Improves extraction of heat from high density rack
- External temperature sensor x 1
- Front temperature LED
- Auto-sensing 110V to 220VAC power input
- 48V, 24V or 12VDC power option
Basic 33U Door Mount Fan Model Coverage
InfraCool F-33.9 Basic Door Mount Fan Panel is able to extract hot air from rear of rack or intake cool air to the front of the rack. To improve extraction of heat from high density rack, the fan panel is typically installed on the outside of a rack’s rear perforated door. If aisle is relatively narrow for exterior mounting, the unit may be installed on the inside of the perforated door. Such installation flexibility is also applicable to front door intake fan requirement.
| Model | Installation | Airflow | Purpose |
|---|---|---|---|
| F-33.9A | Rear door outside | Extract airflow | Exhaust air out from rack |
| Front door inside | Intake airfow | Cool air in from aisle | |
| F-33.9B | Front door outside | Intake airflow | Cool air in from aisle |
| Rear door inside | Extract airflow | Exhaust air out from rack |
External temperature sensor (included)
- Plug & play
- 2M wire
Management and Setup
Package Contents
- 33U door mount fan panel x 1 pc
- 6 ft power cord x 1 pc
- User Manual x 1 pc
- Mounting screw x 6 pcs ( attached with the unit )
- External temperature sensor x 1 pc
- Air blocking material x 1 pc
Hanging bracket kit (Optional)
Part no. : F-HBK
- Hanging bracket x 2 pcs
- M4*6mm screw with nut x 4 sets
- M4*10mm screw x 2 pcs

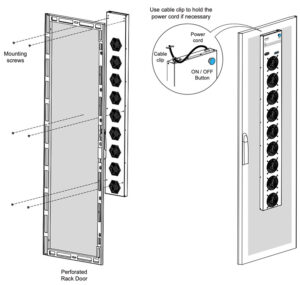

Installation steps
The weight of the unit is less than 5kg, so in most cases, holes in perforated rack doors can be used to mount the unit.
- Lift the unit to the desired position.
- Place attached 6 screws then through the door and tighten them.
- Connect the power cord to the PDU of the rack through the cable entry hole on the rear top of the rack.
- If no cable entry on the top, the unit may be installed on the inside but the model need to be changed. Please refer to P.1 .
